ALLEGRI AUTOMOTIVE

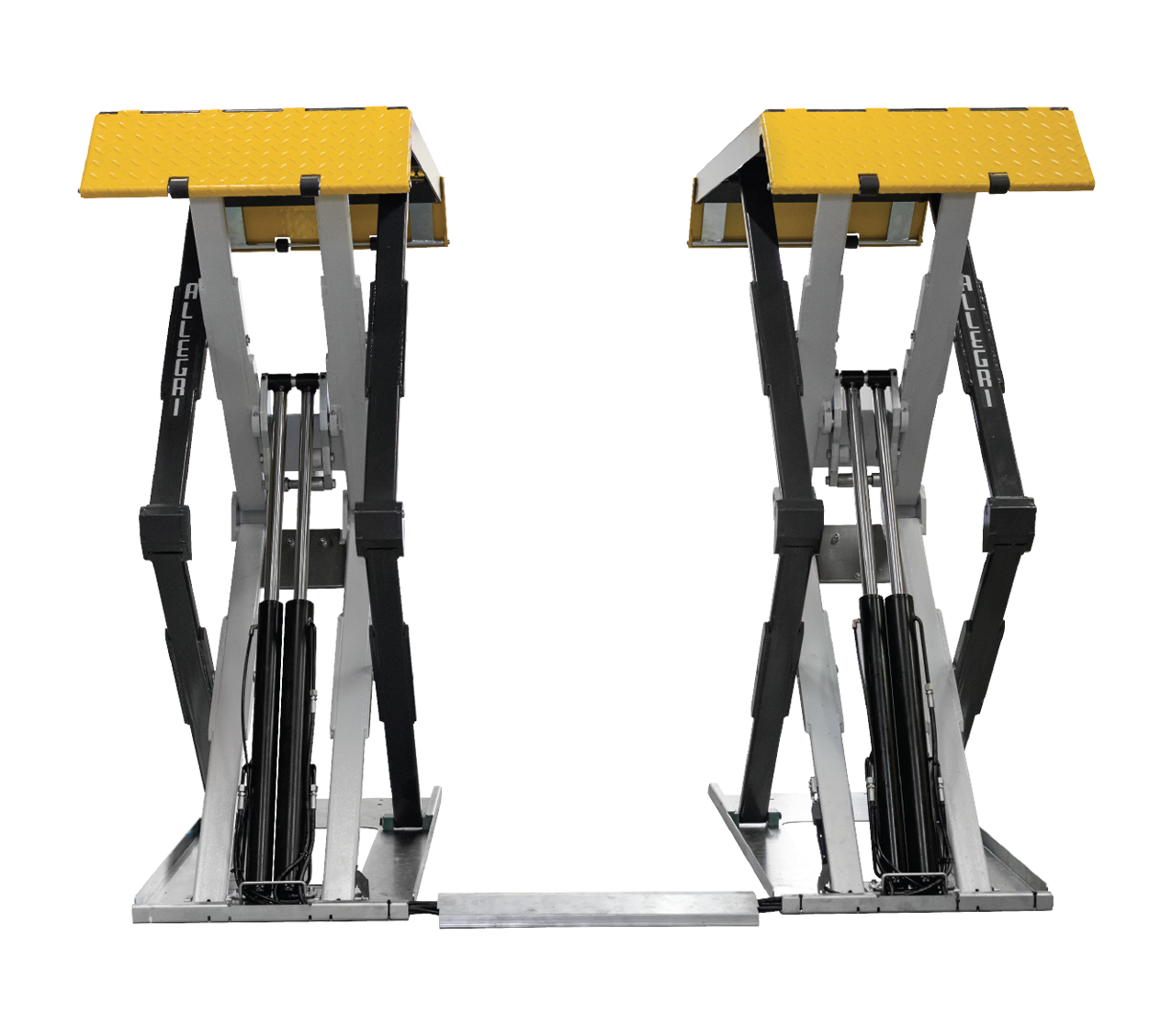

A 35 R

CAPACITY 3500 KG

ELECTRO-HYDRALIC LOW PROFILE DOUBLE SCISSOR LIFT

TECHNICAL AND MECHANICAL CHARACTERISTICS
1 With dual pair of master/slave cylinders without rack
2 Load-bearing structure in extra, “solid” certified-quality tubular steel
3 Large-scale external articulations supported on three load-bearing points of movement
4 Central articulations, 210 mm wide, supported on four load-bearing points of movement
5 Control unit: made up of two rockers in a special shape for  obtaining a progressive distribution of the power and the speed, with a reduced and constant oil-hydraulic pressure
6 Oversized connecting rods, n. 88 self-lubricating bushes with tempered and chrome plated steel pins
7 Reinforced ramps

• 88 self-lubricating bushes

REACHED PURPOSE: the approval of our customers

    A 35 R A 35 RI
Max. capacity kg 3500 3500
Lifting time sec 44 44
Lowering time sec 42 42
Electric motor Volt-A-Hz 230 - 400 230 - 400
Electric motor power Kw- Hp 2,6 - 3,5 2,6 - 3,5
Max working pressure bar 290 290
Control circuit tension Volt 24 24

Bushings on reinforced

Stainless steel bushings on reinforced joints for perfect stability

Rollers

Sliding on rollers with self-lubricating bearing bushes.

DO YOU NEED ADVICE?
Our experts are at your disposal!
All our lifts are completely designed, built and tested at our company premises.
